品牌:A.E精工
起订:1个
供应:1000个
发货:3天内
发送询价

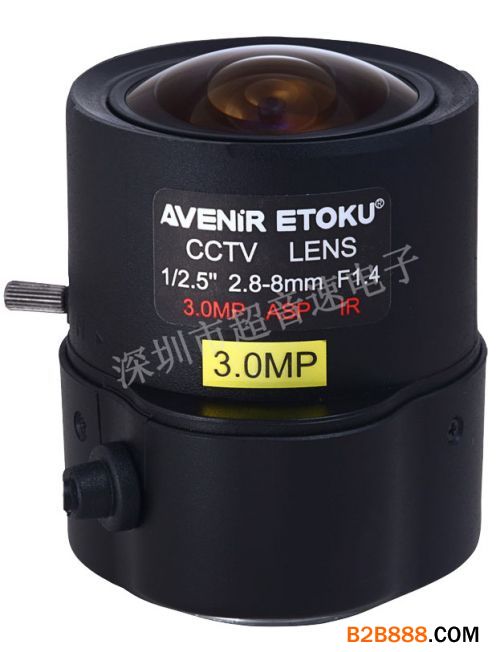

| 2.8-8mm规格书 | ||
| 型号Model No. | SSV2808GNBIRMP | |
| 规格Image size (CCD type) | 1/2.5" | |
| 焦距Focal length | 2.8～8mm | |
| 光圈值Aperture(F) | F1.4-360 | |
| 接口方式Camera mount | CS | |
| 后焦距值Back focal length | 7.98～15.57mm | |
| 操作方式Operation | 光圈Iris | 直流驱动Direct Drive |
| 聚焦Focus | 手动Manual | |
| 变焦Zoom | 手动Manual | |
|
视场角
Field of view (DXHXV)
|
广角Wide | 144.9°×115.7°×86.4° |
| 长焦Tele | 51.7°×41.5°×31.2° | |
| 最短物距Minimum object distance | 0.3m | |
|
有效口径
Effective diameter
|
前组Front | Φ27.5mm |
| 后组Rear | Φ7.6mm | |
| 波长Coating | 400～950nm | |
| 特性Feature | ED、ASP、IR-C、3.0MP | |
| 外形尺寸Dimension (DXHXL) | Φ39.3mm×46.1mmx46.1mm | |
| 工作温度Application temperature | -10ºC ～ +50ºC | |
| 重量Total weight | 85.3g | |
