品牌:铠卫
产品规格:欧版多线型
产品型号:CP1000
产品品牌:铠卫
起订:1只
供应:50000只
发货:3天内
立即购买
General Descript ion

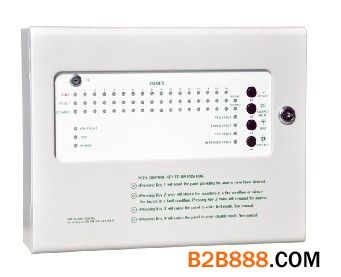

The CP1000 Series Conventional Fire Alarm Control
Panel is a 24 volt, four to sixteen-zone, Class B,
Conventional Fire Alarm Control Panel. Designed
exclusively to meet the latest market requirements
and future Euro codes, the highly cost-effective
CP1000 Series can be used in a variety of low- to
mid-sized applications.
Features
4,8,12,16 Zone , All zones accept two-wire
smoke detectors and any normally-open
contact devices.
Two Auxiliary Alarm, One Fault Relay Output.
Two Built-in Sound Output
3.0 amps of total system power.DC24V Output.
RS485 Communication Port.
Installation Guidelines
All wiring must be installed in compliance with the Nationa Electrical
Code, applicable state and local codes, and any special requirements of
the local Authority Having Jurisdiction.
CABINET AND MOUNTING
Cabinet physical dimensions: 335 mm high x 265 mm wide x 87 mm deep.
Cabinet net weight: 4.25 Kg. (without batteries).
Mounting: The cabinet mounts using two key slots at the top of the back and
two additional 6.5mm diameter holes at the bottom.
Technical Specifications
AC POWER: 220VAC, 50 Hz.
Maximum battery charger capacity: 7AH battery.
Total DC24V system power: 3.0 amps.
Maximum current per NAC: 1.25 amps.
Maximum battery charging capability: 7 AH.
DC24V power output.
Integral Form-A Alarm, Auxiliary Fire and Fault relays, rated at: 2.0 amps @
30 VDC (resistive), 2.0 amps @ 30 VAC (resistive).
The CP1000 Series Conventional Fire Alarm Control
Panel is a 24 volt, four to sixteen-zone, Class B,
Conventional Fire Alarm Control Panel. Designed
exclusively to meet the latest market requirements
and future Euro codes, the highly cost-effective
CP1000 Series can be used in a variety of low- to
mid-sized applications.
Features
4,8,12,16 Zone , All zones accept two-wire
smoke detectors and any normally-open
contact devices.
Two Auxiliary Alarm, One Fault Relay Output.
Two Built-in Sound Output
3.0 amps of total system power.DC24V Output.
RS485 Communication Port.
Installation Guidelines
All wiring must be installed in compliance with the Nationa Electrical
Code, applicable state and local codes, and any special requirements of
the local Authority Having Jurisdiction.
CABINET AND MOUNTING
Cabinet physical dimensions: 335 mm high x 265 mm wide x 87 mm deep.
Cabinet net weight: 4.25 Kg. (without batteries).
Mounting: The cabinet mounts using two key slots at the top of the back and
two additional 6.5mm diameter holes at the bottom.
Technical Specifications
AC POWER: 220VAC, 50 Hz.
Maximum battery charger capacity: 7AH battery.
Total DC24V system power: 3.0 amps.
Maximum current per NAC: 1.25 amps.
Maximum battery charging capability: 7 AH.
DC24V power output.
Integral Form-A Alarm, Auxiliary Fire and Fault relays, rated at: 2.0 amps @
30 VDC (resistive), 2.0 amps @ 30 VAC (resistive).
