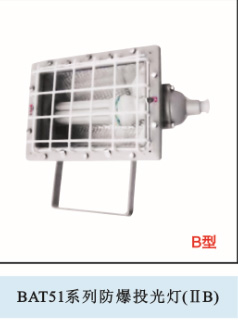

BAT51防爆投光灯[B型]\BAT51防爆泛光灯

适用范围
 1区、2区危险场所。
 ⅡA、ⅡB、IIC类爆炸性气体环境。
 可配装汞灯、高压钠灯、金卤灯.

型号含义

 产品特点
铸铝合金外客，压铸成形，表面喷塑。
灯体可水平安装或壁式安装，仰角在45°~90°内可调。
采用侧面开盖,便于更换灯泡。
采用桔纹漫反射板，使光线柔和且照射角度大。
电缆布线.
符合GB3836-2000，IEC60079标准要求。

 主要技术参数
                   防爆标志                防护等级                 电缆外径(￠,mm)                 进线口螺纹(G")               灯座代号                质量(kg)

--------------------------------------------------------------------------------
                  Exd Ⅱ BT3                 IP55                      10～14                          3/4                         E40                     15
                *Exde II CT3
 配用光源
             光源类型                            自镇汞灯                               高压汞灯                             高压钠灯                          金卤灯

                    额定电压(V)                   220V/50Hz
--------------------------------------------------------------------------------
                     额定功率(w)                   250                                      175                                 150                                175
                                                   450                                      250                                 250                                250
                                                                                            400                                 400                                400

 壳体分类
                         壳体类型                             功率(w)Power                                 重量(g)Mass
                           I                                    150、175                                     7.5
--------------------------------------------------------------------------------
                           II                                    250、400、450                               9.3

 外形及安装举例
                        I 型                   II 型
