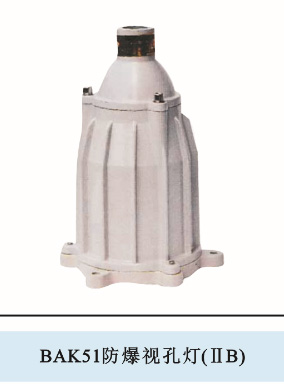

BAK51系列隔爆型防爆视孔灯(IIB)

 适用范围
 1区、2区危险场所。
 ⅡA、ⅡB、类爆炸性气体环境。
 可配装白炽灯

 产品特点
铸铝合金外客，压铸成形，表面喷塑。
视孔灯可根本用户要求做成聚光式，但在
定货时请注明。
钢管或电缆布线均可
符合GB3836-2000，IEC60079标准要求

 主要技术参数
           防爆标志                 防护等级                    电缆外径(￠,mm)                   进线口螺纹(G")                 灯座代号                  质量(kg)

          Exd Ⅱ BT4                 IP55                           10～14                           3/4                            E27                      1.75
 配用光源   外形尺寸
  产品型号                         额定电压(v)                     白炽灯额定功率(w)

  BAK51-40                                                                40
--------------------------------------------------------------------------------
  BAK51-60                        AC 220/50Hz及以下                       60
--------------------------------------------------------------------------------
  BAK51-100                                                               100
--------------------------------------------------------------------------------
  BAK51-150                                                                                                  150
--------------------------------------------------------------------------------
 BAK51-200                                                                200
