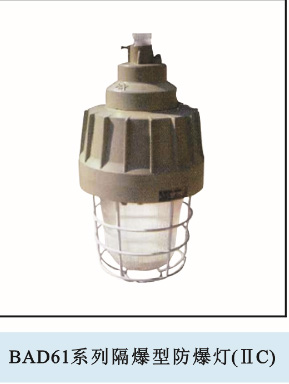

BAD61隔爆型防爆灯

适用范围
1区、2区危险场所。
ⅡA、ⅡB、IIC类爆炸性气体环境。
可配装白炽灯、汞灯、高压钠灯、金卤灯。

型号含义

 产品特点
  铸铝合金外壳，表面喷塑压铸成型，结构紧凑，外形美观。灯体采用螺
丝紧固,防爆性能好.钢管布线。 符合GB3836-2000.IEC60079标准要求.

 主要技术参数
                防爆标志                 防护等级                  电缆外径(￠,mm)               进线口螺纹(G")                 灯座代号

              Exd Ⅱ CT4                    IP65                     10～14                        3/4                          E40
 配用光源

                  光源类型                   自镇汞灯                       白炽灯                 高压汞灯                    高压钠灯                金卤灯

                额定电压(V)                                        220V/50Hz
--------------------------------------------------------------------------------
                额定功率                      250                            300                     175                          150                    175
                            450                                                        250                          250                    250
                                                                                                               400                          400          400
           壳体类型             配用光源功率(W)                   质量(Kg)
--------------------------------------------------------------------------------
             I                                  150、175、250、300                                    6.5
--------------------------------------------------------------------------------
             II                                 400、450                                                     13.8

外形及安装举例

        吸顶式(x)                   吊杆式(g)
