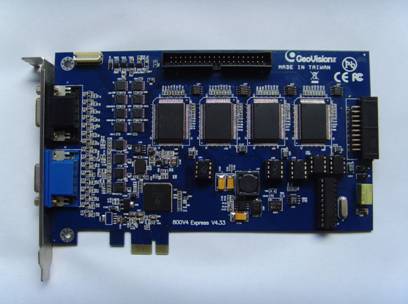

产品型号：SNJ-806

产品规格及特性：

Input Type

PCI –E   D-Type: DB15 X 2

Video Input(s)

 4, 8, 12, 16 Cams

Audio Input(s)

 4 Channels

Total Recording Rate

At 320 X 240 Resolution

 120 fps (NTSC), 100 fps (PAL)

Display Rate

 120 fps (NTSC), 100 fps (PAL).

Video Resolution - NTSC/PAL

 Full D1, Half D1, CIF

Compression Format

 Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2

GV-A16 Support

 Yes

GV-NET Card Support

 Yes

GV-NET/IO Card Support

 Yes

Dimensions (W x H)

 GV-800 D-Type: 174 x 98 ( mm) / 6.85 x 3.86 (in)

Installation Guide

 D-Type (PCI-E)

Installing Two cards

Note: GV-800 is currently not compatible with VIA series and ATI series chipset motherboards, and 64-bit Windows operating system.

Minimum System Requirements For One Card

OS Supported

 Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista

(Not support 64-bit version of Windows)

CPU

 Pentium 4-3.0 GHz with Hyper-threading

RAM

 Windows 2000 / XP: 2 x 512 MB Dual Channels

Windows Vista / Server 2003: 2 x 1 GB Dual Channels

HDD

 80 GB

VGA

 ATI Radeon X600

NVIDIA 6200

DirectX

 9.0c

Minimum System Requirements For Two Cards

OS Supported

 Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista

(Not support 64-bit version of Windows)

CPU

 Pentium 4-3.0 GHz Dual Core

RAM

 2 x 1 GB Dual Channels

HDD

 160 GB

VGA

 ATI Radeon X1300 PCI-E

NVIDIA GeForce 7300 PCI-E

DirectX

 9.0c
